Status:Active
Warranty:1 year limited warranty
SKU:SK3201.300
Expected delivery of quantity in 110 days
Quantity:
Added to Your Shopping Cart
| Brand | Rittal |
| Total cooling output to DIN EN 14511 | : Cooling output L35 L35/50 Hz: 80 W |
| Air throughput (unimpeded air flow) | : External circuit: 45 m³/h Internal circuit: 45 m³/h |

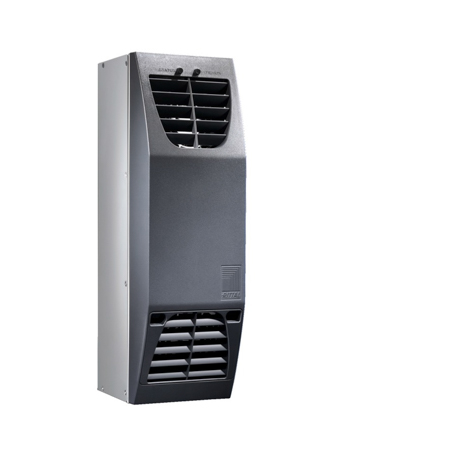

| Product description | : Powerful thermoelectric cooling units in a lightweight design for the climate control of command panels and small enclosures. |
| Total cooling output L35 L30 | : Cooling output L35 L30/50 Hz : 100 W |
| Dimensions | : Width: 125 mm Height: 400 mm Depth: 155 mm |
| Material | : Device: Aluminium, anodised |
| Rated operating voltage | : 24 V (DC) |
| Article number: | : SK 3201.300 |
| Colour | : Cover: RAL 7015 |
| Supply includes | : Thermoelectric climate control unit Fully wired ready for connection (plug-in terminal strip) Mounting accessories Filter mat USB cable A/B Drilling template |
| Design | : wall-mounted |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | : Refrigeration factor L35 L35 (EER) 50 Hz: 0.9 |
| Thermal output | : 80 W |
| Start-up current (LRA) | : 4.5 A |
| Rated current max. | : 4.5 A |
| Protection category to IEC 60 529 | : External circuit IP 34 |
